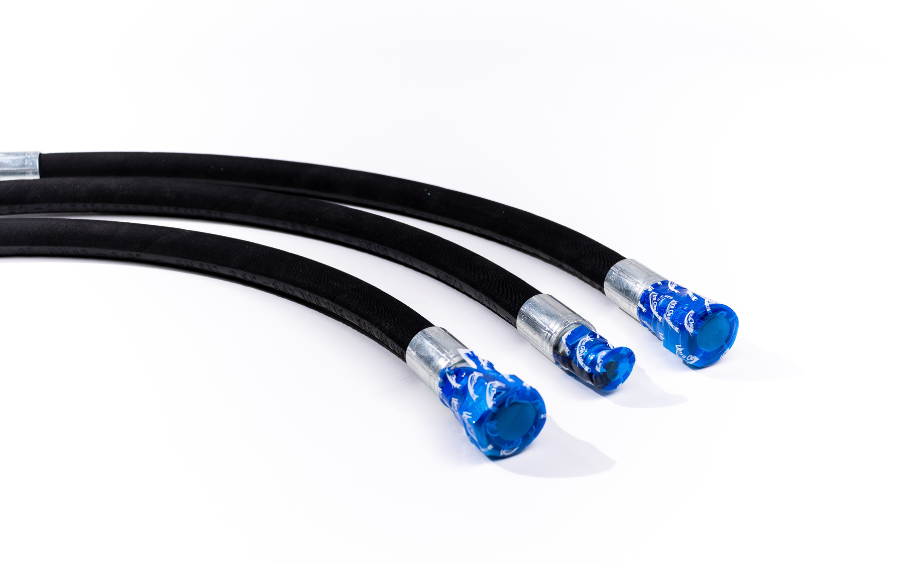

Unplanned field failures and severe pressure drops often trace back to a single design error: treating fluid line layouts as an afterthought during assembly drafting.
When tight chassis space forces sharp bends, using incorrectly rated hydraulic hoses leads to fluid heat spikes, premature hose fatigue, and line delays. By establishing proper routing parameters, vibration controls, and adapter standards early in the design phase, OEM engineering teams eliminate component failure points to keep production lines running on schedule.
What You’ll Learn
- Key factors to evaluate when selecting hydraulic hoses for high-pressure equipment.
- How accounting for pressure contraction and bend radius prevents line failure.
- Methods for reducing pressure drops and fluid turbulence across hydraulic circuits.
- How to match adapter configurations to protect equipment reliability and build schedules.
What Should OEMs Consider When Selecting Hydraulic Hoses and Fittings?
Proper hydraulic hose selection depends on three core factors: accounting for hose length changes, choosing hose flexibility and adapter shapes for tight bends, and selecting the right accessories for high-vibration environments.
How Do Dynamic Pressure Changes Affect Hydraulic Hoses?
Hoses can expand up to 2% and contract up to 4% of the original length. If installed too tight, this contraction creates constant tension that leads to crimped hose separation, fitting stress, and fluid leaks.
The Fix: Account for dynamic pressure contraction when specifying hose assembly lengths. Adding sufficient line slack absorbs dimensional changes during operation without placing mechanical strain on end connections.
Which Hydraulic Coupling Designs Work Best for Tight Bend Radii?
Forcing a standard hose into too tight of a turn strains the outer wire braid, restricts fluid flow, and generates extreme internal heat.
To choose the right components for tight routing:
- Match Hose Flex Ratings: Select high-flexibility hose series designed for tight inside bend limits without compromising structural braid integrity.
- Select Elbow Adapters: Choose 45-degree or 90-degree elbow fittings in compact routing areas instead of forcing a straight hose assembly to bend. Relieving bend stress directly at the connection prevents early wall ruptures.
How Can Accessories Protect Hydraulic Hoses in High-Vibration Environments?
Continuous machinery vibration exposes fluid lines to severe chassis abrasion and structural fatigue.
To secure assemblies:
- Select Heavy-Duty Clamps: Specify cushion support clamps sized to match the hose outer diameter to absorb mechanical oscillation.
- Protect Covers: Choose mounting hardware that secures lines firmly without crushing the outer protective jacket.
How Can You Prevent Severe Pressure Drops in Hydraulic Hose Systems?
To avoid excessive heat and pressure drops, engineering teams must specify accurate internal hose diameters and install swept elbow fittings that support efficient laminar flow.
How Do You Select the Right Dash Size for Hydraulic Hose Fittings?
Specifying an undersized dash size forces hydraulic pumps to work harder, generating excess heat and causing severe pressure drops.
- Dash Size Selection: Calculate internal hose and fitting diameters (dash sizes) based on maximum system flow rates to lower fluid velocity, reduce internal turbulence, and prevent severe temperature spikes.
Which Fitting Geometries Support Smooth Flow in Hydraulic Hose Coupling Systems?
Component shape plays a direct role in maintaining hydraulic system efficiency.
- Swept Elbows vs. Block Designs: Specify swept elbow fittings over harsh 90-degree block components to maintain smooth flow and reduce friction losses across the circuit.
What Are the Main Types of Hydraulic Fittings and Port Configurations?
Selecting the right port type dictates how an assembly handles physical stress, pressure spikes, and machine vibration under heavy load. An improper match risks thread galling, blown seals, or total joint failure. Evaluating these factors upfront allows OEM engineers to identify the correct fitting needed for long-term reliability:
- O-Ring Face Seal (ORFS): Features flat-face sealing with an elastomeric O-ring, engineered for high-pressure, severe-vibration applications.
- JIC 37 Degree Flare: A metal-to-metal mechanical seal utilizing a 37-degree flared seating surface for standard industrial machinery.
- SAE O-Ring Boss (ORB): Straight-thread port connections with an elastomeric seal, built specifically for high-pressure manifolds, cylinders, and valve blocks.
- National Pipe Tapered (NPT / NPTF): Tapered thread configurations that create a mechanical seal along the threads for legacy systems.
- International Threads (BSPP, BSPT, and Metric): Global thread standards essential for mating with imported machinery, pumps, and international equipment.
- Flange Fittings (Code 61 and Code 62): Heavy-duty four-bolt flange connections designed specifically for high-pressure, large-diameter lines.
- Specialty and Jump Adapters: Elbows, tees, crosses, and size-reducing adapters that convert connections across 8,000 unique configurations.
Where Can You Find Technical Verification Tools for Hydraulic Hose Fittings?
The right part comes down to having the right data. Our website has the following resources to help you confirm the fitting you need:
- Technical Resources: Quickly look up thread dimensions, dash sizes, and pressure ratings across our catalog.
- Parts Matrix: Use our quick-reference chart to match end connections and angle configurations to the exact Tompkins part number.
Verifying your specs upfront keeps your build lines on schedule and prevents costly field failures.
Optimize OEM Builds with Tompkins
Equipment failure in the field never stays quiet; it impacts your brand, frustrates your customers, and halts production. Designing reliable hydraulic routing upfront ensures that every system leaving your factory reflects the quality and dependability your customers pay for.
Our team is ready to help you eliminate design risk. Contact Tompkins today to review fitting specs, refine line layouts, and protect your build with dedicated technical support.
Frequently Asked Questions About Hydraulic Hose & Fittings for OEMs
How do I choose the right hydraulic hose for my application?
Selecting the right hose requires matching system pressure, operating temperature, fluid compatibility, and line size to your equipment specifications. Evaluating these physical parameters prevents unexpected pressure drop and premature line wear. You can reference Tompkins’ technical resources to verify exact tolerances before installation.
Do you offer pre-assembled hydraulic hose and fittings?
Yes, custom hydraulic hose assemblies are configured directly to your required length, pressure rating, and fitting parameters. Delivering factory-crimped, pre-tested lines eliminates assembly errors and speeds up field replacement. Every build adheres to strict quality controls to ensure dependable performance in heavy-duty applications.
Where can I buy hydraulic components with same-day shipping in Canada?
Tompkins Canada provides same-day shipping on in-stock hydraulic fittings and components for orders placed before 3 PM EST. Strategic inventory management ensures quick dispatch to minimize equipment downtime across Canadian operations.
How can I order hydraulic parts online quickly?
Our online ordering platform offers a streamlined, self-serve experience for fast component selection and tracking. You can quickly verify part numbers, check stock availability, and complete purchases without administrative hassle. Clear product organization makes reordering routine manufacturing components simple and efficient.
How do your hydraulic solutions improve manufacturing efficiency?
Tompkins hydraulic components protect manufacturing equipment from frequent line leaks, dynamic pressure fluctuations, and unexpected component fatigue. Our ISO 9001:2015 certified fittings maintain steady machine operation and reduce costly maintenance rework. Assisting your team with precise component selection secures uninterrupted production runs and preserves overall plant output.
